Using the Tournament Manager Webserver Function

Initial Requirements

  1. The device you wish to connect must be connected to the same wireless network as the Tournament Manager (TM) Server.
  2. The device must have a web browser (Chrome, Edge, etc.) installed.

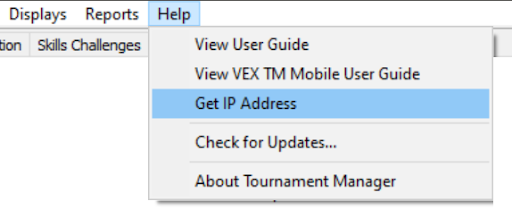

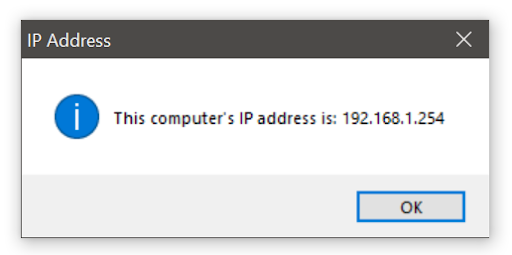

  3. Whoever is setting up the device must know the (TM) Server IP address (find it in TM by going to “Help -> Get IP Address”).

Get IP Address.pngTM IP address.png

Step-by-Step Instructions

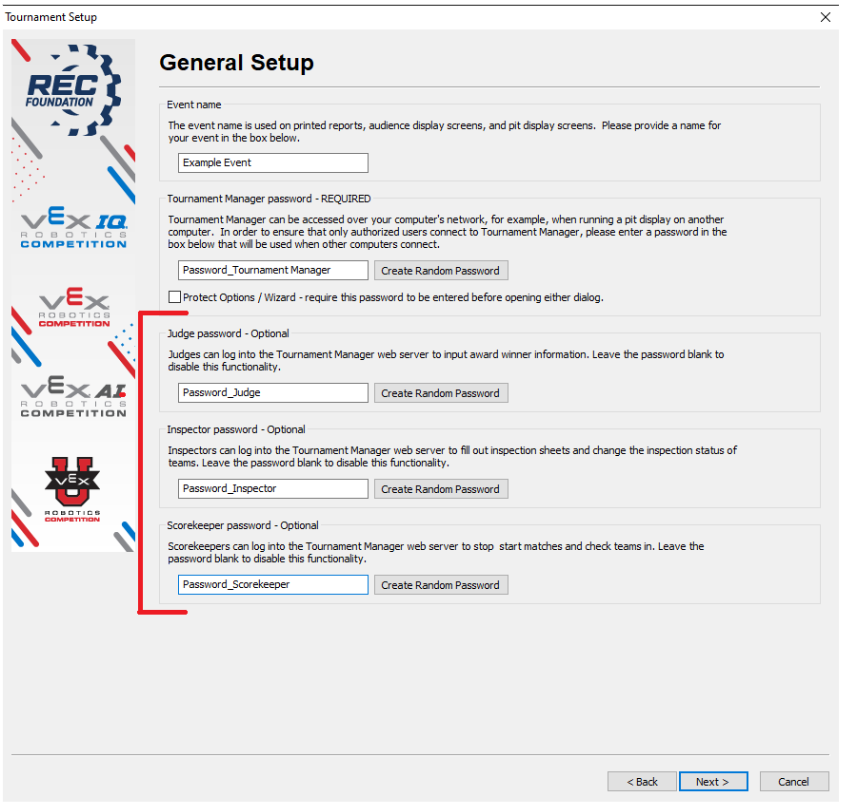

  1. On TM Server. In the TM setup, create passwords for the types of access you wish to use. This can be done either during the initial TM setup, or by going into Tools -> Options -> General. If you do not enter a password, that optional feature will not work.
    set passwords in TM.png
  2. On Device. On the device, ensure you are connected to the same wireless network as the TM Server.
  3. On Device. On the device, open a web browser and enter the TM Server IP Address.
    enter TM Server IP address.jpg
    When you've connected successfully, you'll see the event's team list.

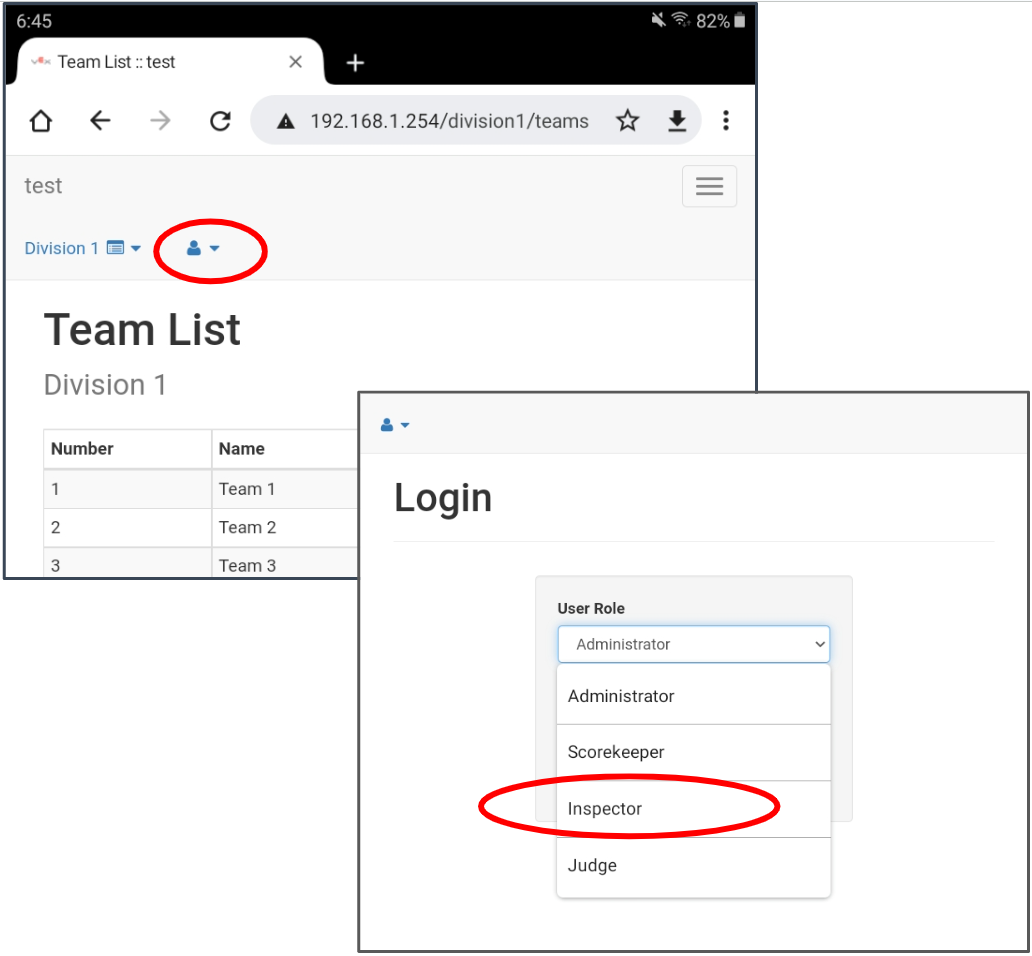

  4. On Device. Log in as Inspector, Judge, or Scorekeeper by clicking the circled icon, and selecting the desired type of access from the drop down list. Use the Password previously set up in TM for that role.
    connect to TM as an inspector.png

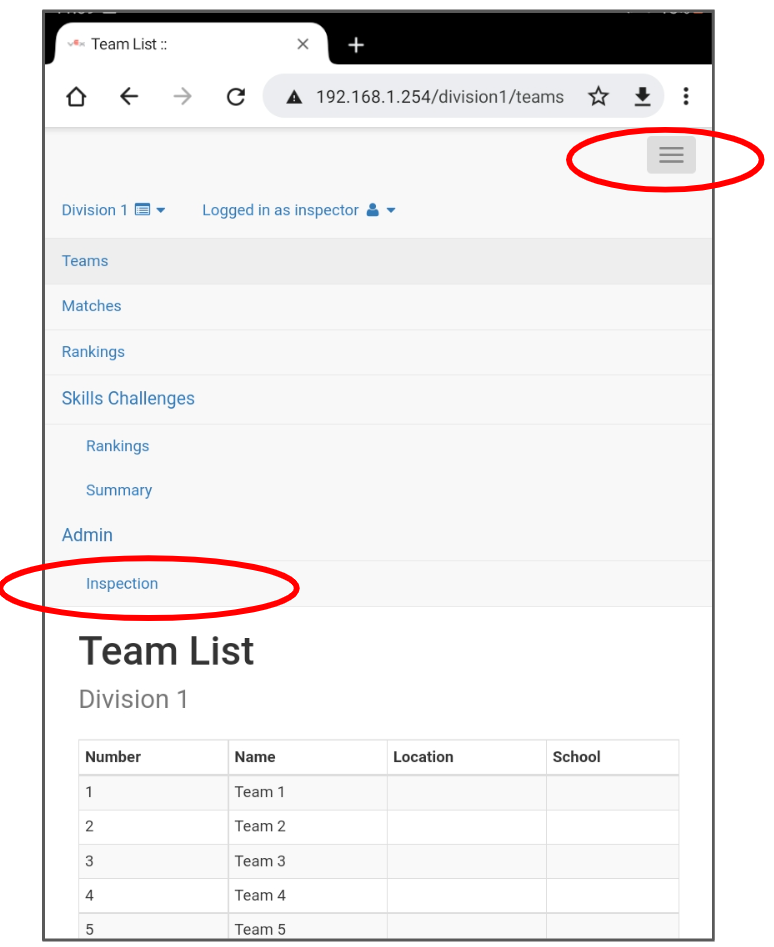

  5. On Device. Once logged in, use the menu button in the upper right corner to bring up different options.
    Select TM inspection interface.png
