Spēļu rokasgrāmatas VEX V5 Robotikas sacensību tiesnešiem

Game manuals contain game descriptions and scoring, robot rules, and tournament rules. Game manuals are updated throughout the game season. Sekojiet līdziVEX forumam, lai uzzinātu par Push Back un oficiālajām VEX V5 robotikas sacensībām Push Back Q&A , lai saņemtu jaunāko informāciju.

Spēles apraksts

VEX V5 RC pilnkrāsu 2025-26.png

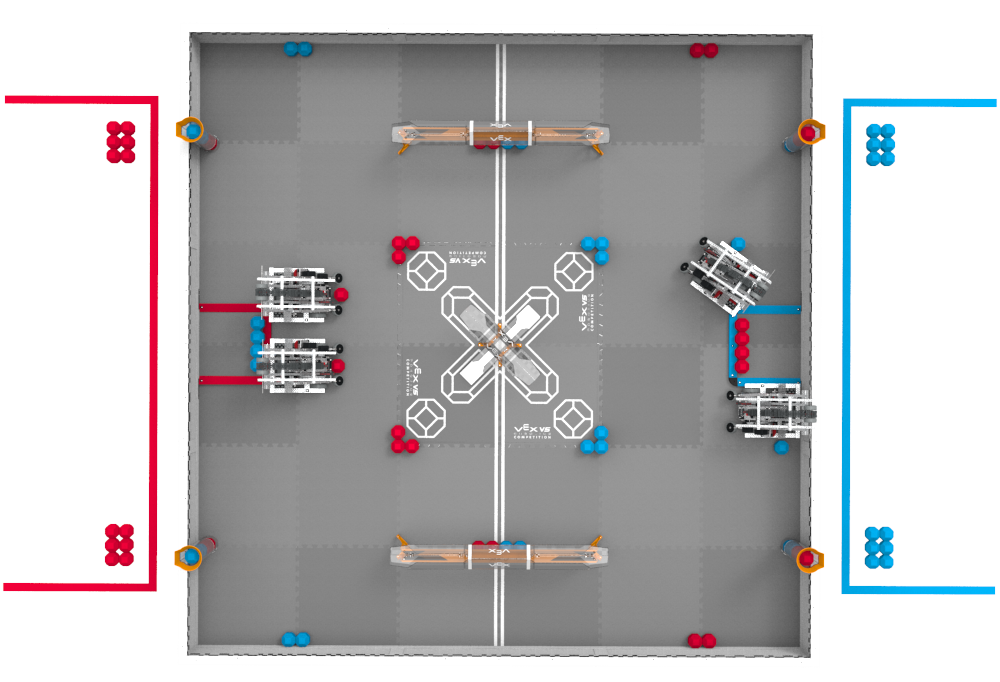

VEX V5 Robotics Competition Push Back is played on a 12’x12’ square field configured as seen below. Two (2) Alliances – one (1) “red” and one (1) “blue” – composed of two (2) Teams each, compete in matches consisting of a fifteen (15) second Autonomous Period, followed by a one minute and forty-five second (1:45) Driver Controlled Period.

The object of the game is to attain a higher score than the opposing Alliance by Scoring Blocks in Goals,
Controlling zones within Goals, clearing Loaders, and Parking in defined zones at the end of the Match.

Sīkāka informācija

There are eighty-eight (88) Blocks on a V5RC Push Back Field.

There are four (4) Goals located around the field. Two (2) Long Goals, and two (2) Center Goals. Ir arī divas (2) parka zonas, pa vienai (1) katrai aliansei.

Each Block scored in a Goal is worth three (3) points. Alliances receive points for Controlling zones in Goals.

Alliances can receive additional points for Parking robots at the end of a Match.

The Alliance that scores more points in the Autonomous period is awarded with ten (10) bonus points, added to the final score at the end of the match. Each Alliance also has the opportunity to earn an Autonomous Win Point by completing assigned tasks. This additional Win Point can be earned by both Alliances, regardless of who wins the Autonomous Bonus.

Lauks


Vērtēšana

Autonomā prēmija 10 punkti
Katrs bloks tiek vērtēts 3 punkti
Katra kontrolētā zona garajos vārtos 10 punkti
Kontrolētie centra vārti - augšējie 8 punkti
Kontrolēts centra vārtu guvums — apakšējais 6 punkti
1 novietots alianses robots 8 punkti
2 novietoti alianses roboti 30 punkti

Lejupielādes & saites

Spēles rokasgrāmata

Ātrās uzziņas rokasgrāmatas

Spēles “Push Back” drukājamā apskata sadaļa

Apmācības kursi

Push Back Head tiesneša apmācība un sertifikācija

Lauka montāža

Robot Inspection

Drīzumā!

Atgrūdiet varoni robotu

Atgrūdiet varonīgo robotu "Dex" — 3D būvēšanas instrukcijas

Atgrūdiet varonīgo robotu "Dex" — drīzumā būs pieejamas PDF būvēšanas instrukcijas

Atbīdiet papīra rezultātu lapas
